Fish Paper

Main Parameters:

Insulation class:  E class (120 °C)

Color: Cyan, Brown, Blue

Width: 10-1300mm

Thickness: 0.08-0.45mm

Can be customized

product information

Description of Fish Paper

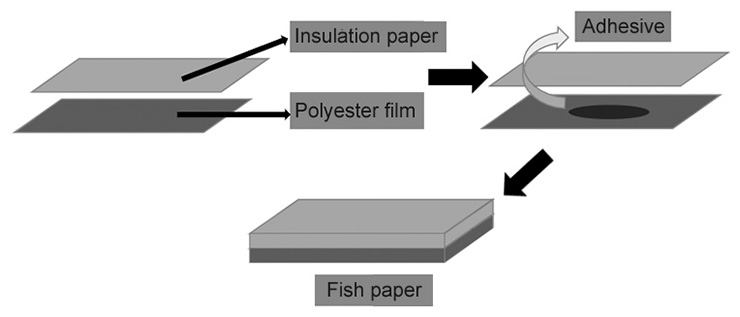

Fish paper is a two-layer flexible composite material, produced by B Class adhesive to adhere insulation paper with polyester film together
--Two layers: polyester film is bonded with insulating paper.
--Base Layer: 100% Sulfate wood pulp presspaper
--Outer Layer: Polyester film(PET) for Electrical Purposes
Advantages of the Fish Paper:
—Outstanding dielectric properties
—Fish paper electrical insulation has good mechanical strength because it’s fibrous
—Retains greater flexibility than plastics at low temperatures

Features of the Fish Paper:

—Width: 10-1300mm
—Thickness: 0.08-0.45mm
--Form: roll, sheet, strip
--Colur: Blue, cyan, nature brown. Special colours can be provided on request. --Three or four layers can be produced on request.
--The insulation system has been approved by UL (NO.: E310670) and the products have passed ROHS and RECH test.

Flexible Laminates,fish paper, insulation paper
Technical Parameters





Applications

Electrical insulation class E fish paper is used as slot, phase, turn-to-turn and liner insulation in Class E/B motor and electrical appliances.
