Epoxy Prepreg DMD

Main Parameters:

Insulation class:   F class (155 °C)

Color: red

Width: 1000mm

Thickness: 0.16mm,0.18mm,0.20mm,0.23mm,0.25mm

Can be customized

product information

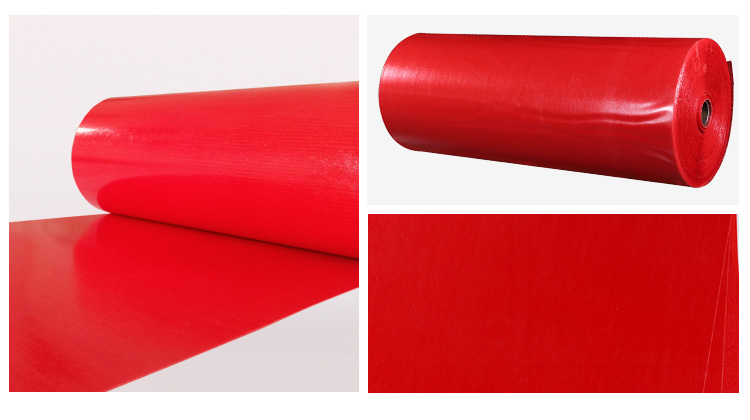

Brief Introduction of Epoxy Prepreg DMD

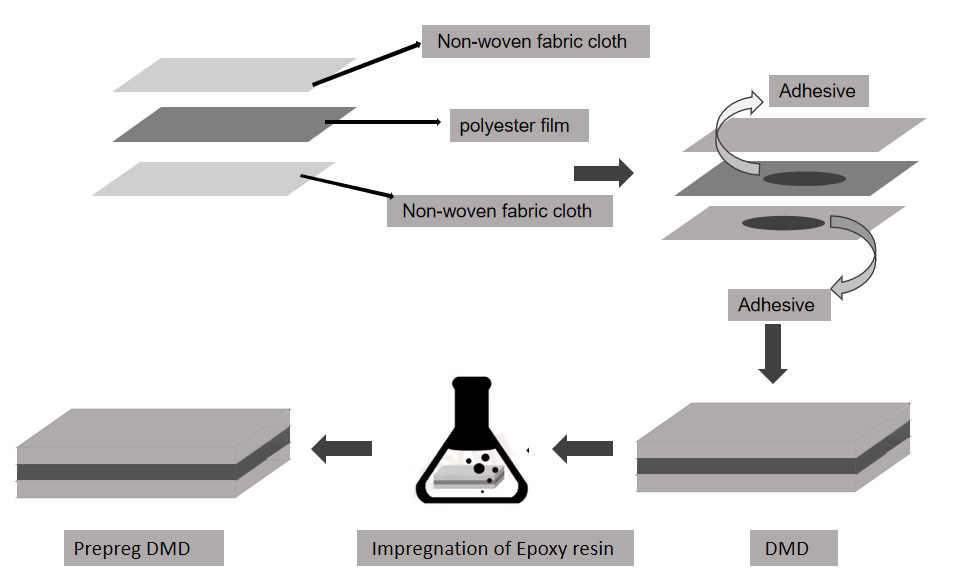

Epoxy prepreg DMD is made of F— grade DMD impregnated modified epoxy resin by baking and rewinding. Epoxy resin can be cured quickly, with low molecular volatiles and low shrinkage.
It has long shelf life at room temperature,low precuring temperature and time,showing excellent electrical insulation, bonding and heat-resistant properties.

Main Features of the Epoxy Prepreg DMD

—Insulation class:   F class (155 °C)
—Color: red
—Width: 1000mm
—Thickness: 0.16mm,0.18mm,0.20mm,0.23mm,0.25mm
—Can be customized
—Epoxy prepreg DMD has been approved by UL (NO.: E310670) ,ROHS and REACH test.

Insulation Laminates,Flexible Insulation Laminates,Flexible Laminates

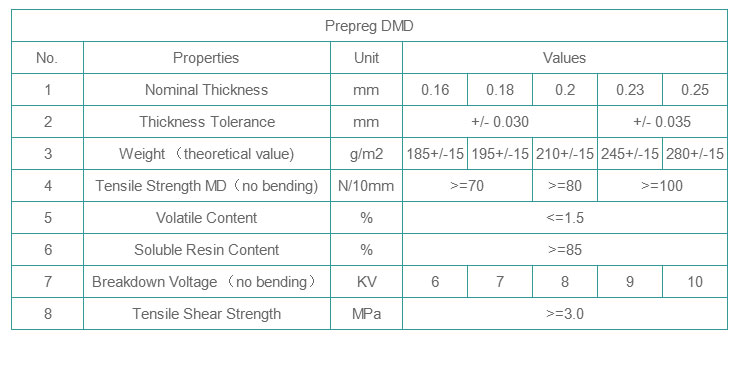

Technical Parameters




Class F electrical insulation epoxy prepreg DMD is suitable for layer insulation of copper foil or aluminum foil on low-tension coils of dry-type transformers as well as suitable for slot and turn-to-turn insulation of B-class and F-class motors and electrical appliances.
