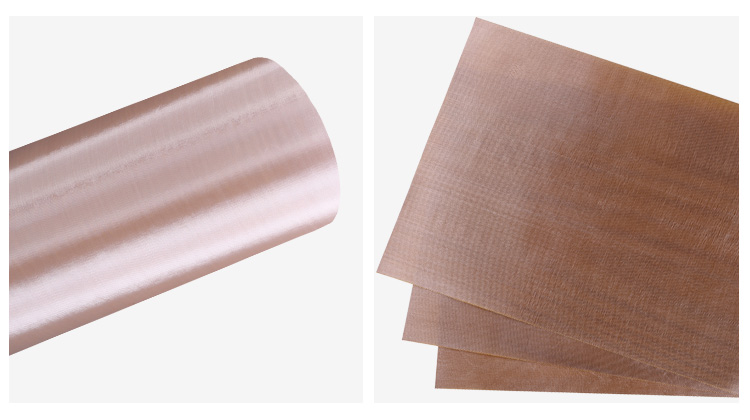

GHG Insulation Paper

Main Parameters:

Insulation class:  class: H class (180 °C)

Width: 10-1250mm

Thickness: 0.15-0.25mm

Can be customized

product information

Brief introduction of the GHG Insulation Paper

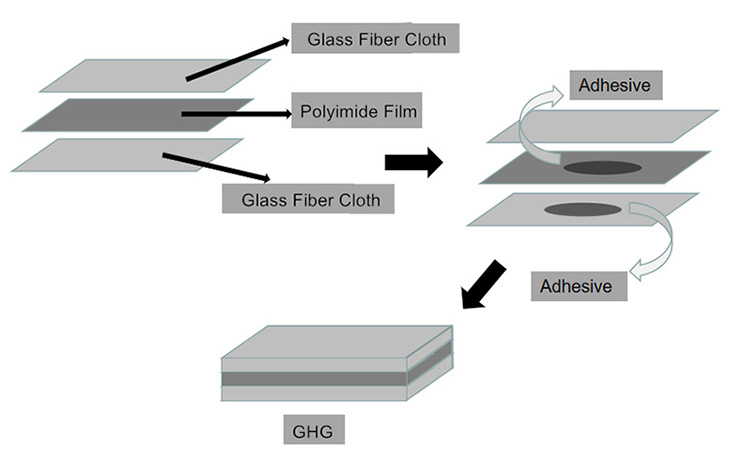

GHG is a three-layer flexible composite material, produced by using H-class adhesive to adhere the two sides of polyimide film with alkali-free glass cloth.
It is with good physical mechanical property, dielectric property, soft and tear resistant, heat property and fire resistance property.

Main features of the GHG Insulation Paper

--Good mechanical, electric, thermal properties.
--Thermal class is H (180 C).
--Used instead of Nomex paper and Nomex paper laminates
-Used as layer insulation of class H and F dry type transformer.
--Slot insulation,
--Pas insulation.
--Turn- to- turn insulation in electric motors.
--Marks: we can make thickness 0.09mm - 0.35mm
--The insulation system has been approved by UL (NO.: E310670) and the products have passed ROHS and RECH test.

GHG Insulation Paper

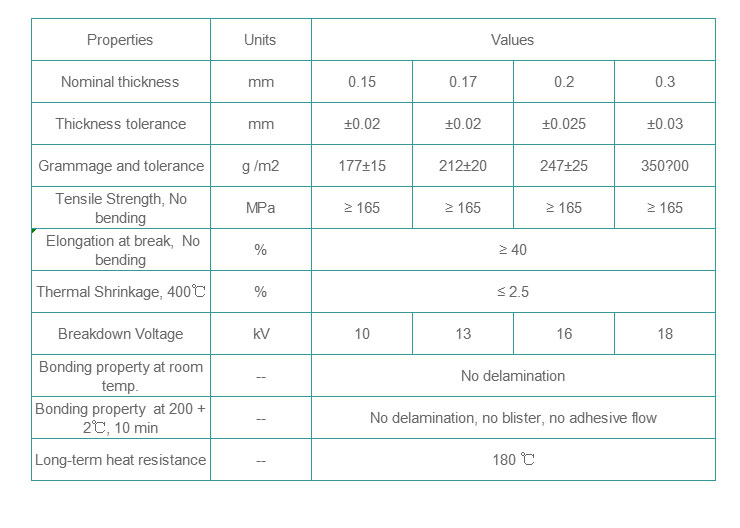

Technical Parameters





Applications

GHG Insulation Paper can be used for the insulation treatment of H Class electric motor and transformer.
It is used as layer insulation of class H and F dry type transformer and slot insulation, pas insulation and turn- to- turn insulation in electric motors.
