NHN Insulation Flexible Laminates

Main Parameters:

Insulation class: H class (180 °C)

Width: 10-914mm

Thickness:0.14-0.4mm

Can be customized

product information


Brief Introduction of NHN Insulation Flexible Laminates

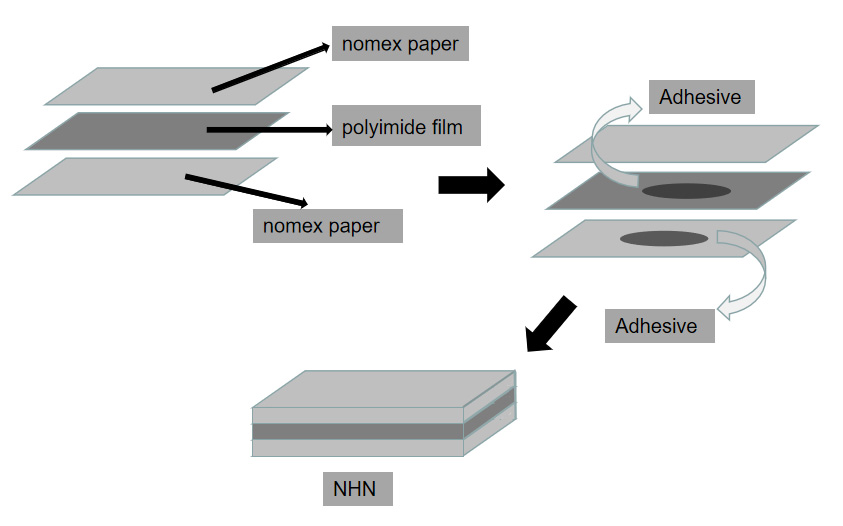

NHN flexible laminates is a three-layer flexible composite material, produced by using H-class adhesive to adhere the polymide film with hot rolling DuPont NOMEX@ paper on both sides.
About the Nomex paper:
Ideally suited for a variety of temperature ranges and applications, laminate insulation products based on Nomex® paper help enhance the performance and reliability of rotating machines.
Compared with the NMN insulation paper, the difference is the film, NHN use the polyimide film, about this polymide film,it exhibits an exceptional combination of thermal stability (>500°C), mechanical toughness, and chemical resistance. They have excellent dielectric properties and inherently low coefficient of thermal expansion.
NHN Laminates insulation paper has a heat resistance grade of H grade, has good dielectric properties and mechanical properties, and is excellent in mechanical properties at high temperatures and after damp.

Main advantages of this NHN Insulation Flexible Laminates

1. Excellent mechanical properties: such as good tensile strength and edge tear resistance, electrical properties, dielectric properties, mechanical toughness, chemical compatibility, thermal conductivity, radiation resistance,
2. Low moisture absorption rate, good moisture resistance
3. Has excellent insulation properties.
4. Insulating paint infiltration effect is strong.
5. Add some heat-resistant organic fiber, long-term withstand voltage at high temperature, excellent flame retardant and flame resistance, thermal stability, heat resistance and thermal conductivity.
6. the material is safe and non-toxic, and the shaping effect is excellent.

NHN Insulation Flexible Laminates
Technical Parameters





Applications
As slot insulation of H class motors and electrical appliances, inter-turn insulation, gasket insulation, and interlayer insulation of Class H dry-type transformers.
This laminate can be divided into kinds. The thicker one(0.05mm) with yellow line, the other one(0.04mm) with orange line.
The thicker Polyester film you choose, the higher electrical strength is
NHN Insulation Flexible Laminates
