Phenolic Paper Laminated Tube

Main Parameters:

Insulation class: B class (130 °C)


Length:regular 1000mm

Can be customized

product information

Brief Introduction of the Phenolic Paper Laminated Tube

Phenolic paper laminated tube is made of insulating winding paper or insulating impregnated paper impregnated with phenolic resin, heated and pressed, baked and cured.
Phenolic paper based tubing has been used for electrical insulation since the early 20th century. The combination of the high-temperature resistant phenolic resin and a treated paper convolute wound tube provides excellent strength, weather resistance and electrical resistance. Phenolic paper-based tubing has been used extensively through the years in various applications and parts in switch gear, transformers, tap changers, munitions, rockets, bushings, sleeves, coil forms, core tubes and casings.
Phenolic tubes can be used for insulating washers, carrying electrical wiring or switchboard panels and they can be threaded, tapped, drilled or machined with equipment for wood or soft metals.

Main features of the Phenolic Paper Laminated Tube

—High dimensional stability
—Chemical, moisture & oil resistance
—High dielectric strength
—High strength-to-weight ratio
—High dimensional stability
—Insulation class: B class (130 °C)
—Length:regular 1000mm
*Can be customized
—It has been approved by UL (NO.: E310670) ,ROHS and REACH test.

 Phenolic Paper Laminated Tube

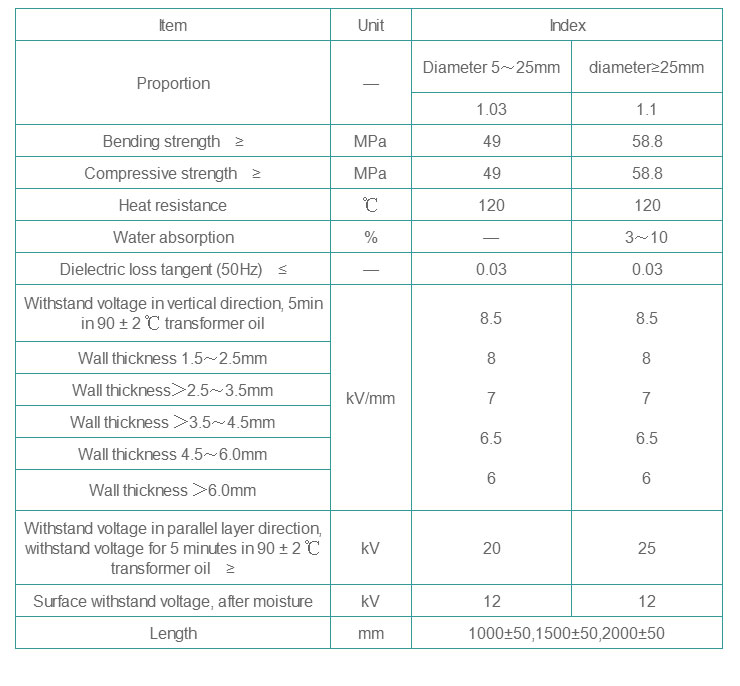

Technical Parameters




Phenolic paper laminated tube is suitable for insulation structural parts in electrical equipment, and can be used in humid environments and oil transformers.

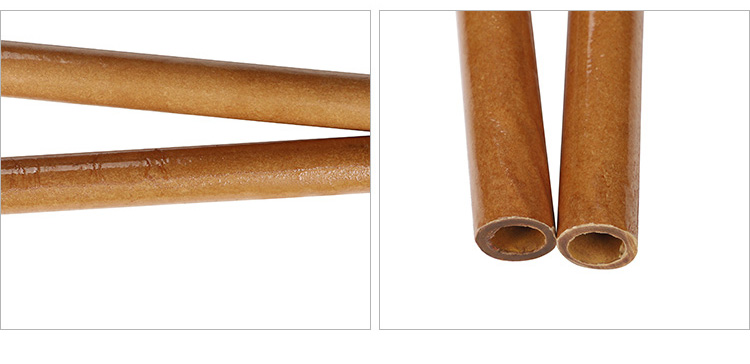

 Phenolic Paper Laminated Tube
