Phenolic Paper Board

Main Parameters

Model: 3021

Insulation class: B class (130 °C)

Color: Brown,red,orange,black.

Thickness:2-100mm

Size:1020*2070mm

product information

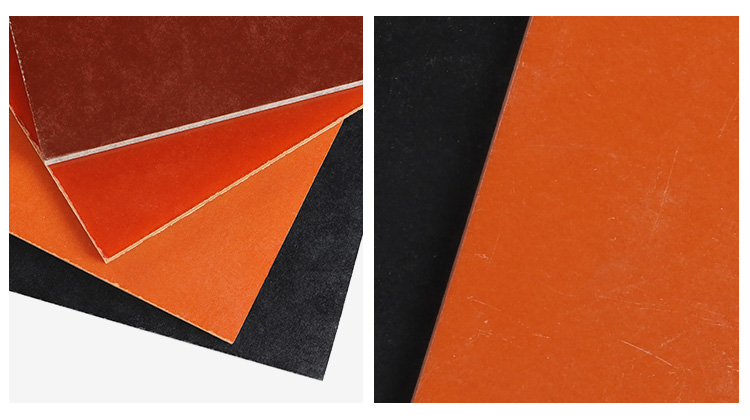

Brief Introduction of the Phenolic Paper Board

Phenolic paper laminated Board is made up of paper impregnated with phenolic resin by baking and heat pressing. It is used as a material for isolation in conditions of normal relative humidity of an environment and in transformer oil at a pressure up to 1000V.  Phenolic paper laminate sheet it is possible is long to maintain at working temperature from-65°С up to +120°С
The resulting material is a tough laminate with a high impact resistance, excellent tensile, compressive and flexural strengths.
·  For better electrical properties consider CE or LE Phenolic.
·  aka Micarta, Bakelite, Bakelita, Riser Plate, Tooling Plate and more

Main features of the Phenolic Paper Board

—Excellent dielectric properties
—Great machinability and easy to process
—Superior resistance to acid, chemical solvents and insulating oil
—Insulation class: B class (130 °C)
—Color: Brown,red,orange,black.
—Thickness:2-100mm
—Size:1020*2070mm
—3021 phenolic paper laminated Board has been approved by UL (NO.: E310670) ,ROHS and REACH test.

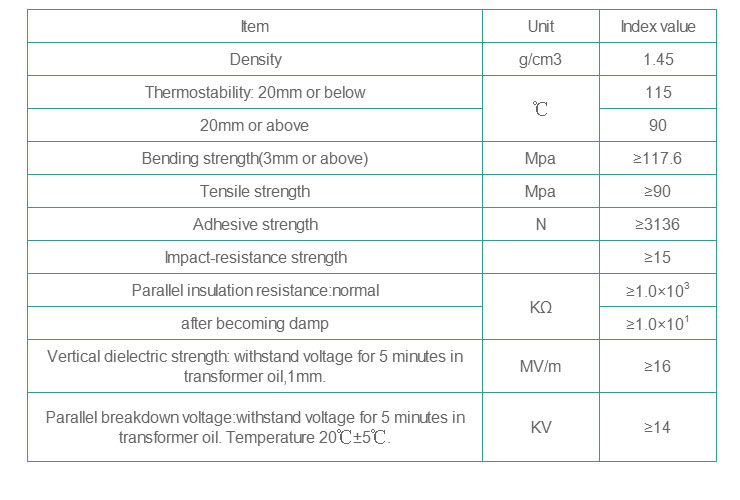

Technical Parameters





Applications

3021 phenolic paper laminated Board can be used for electric motor, electrical equipments which request high mechanical properties, also used in oil transformer..
