1053 Silicone Impregnating Varnish

Main Parameters:

Model: YA1053

Insulation class: H class (180 °C)

Can be customized

product information

Composition of the  Silicone Impregnating Varnish:

silicone resin, modifier, solvent, drier, etc.
insulation varnish

Main advantages of the Silicone Impregnating Varnish:


H-class insulation material. With excellent heat resistance, long-term operating temperature is allowed to be 180 ~ 200 ℃ or higher without significant weight loss.

Good dielectric properties. The dielectric constant, breakdown strength, and volume resistance do not change much at high and low temperatures (-50 to 250 ° C) and a wide frequency range; cold resistance, acid and alkali resistance, radiation resistance, and oxidation resistance.

Silicone Impregnating Varnish

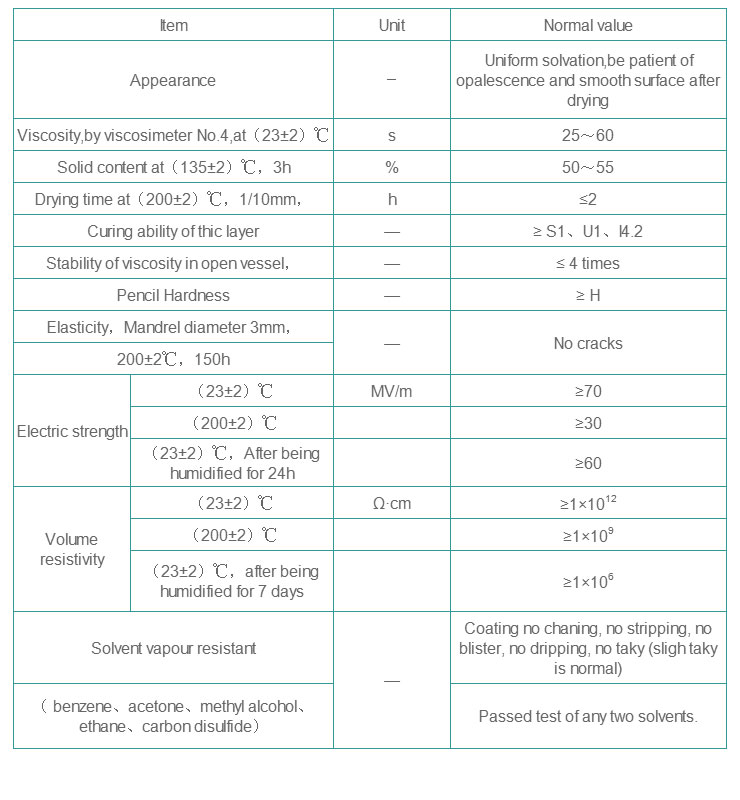

Technical Parameters





Applications

1053 Silicone Impregnating Varnish: is used for impregnating H-class motor and electrical windings.
insulation varnish

Previous:  1042 Imine Epoxy Insulation Impregnating Varnish

Next:  1054 Polyester Modified Silicone Resin Impregnated Varnish
