2740 Acrylic Coated Fiberglass Sleeve

Main Parameters:

Model: 2740

Insulation class: F class (155 °C)

Color: Red, white, black,etc

Inside diameter: 1-35mm

Voltage:1.5kv,4kv.

product information

Brief Introduction of Acrylic Coated Fiberglass Sleeve

Acrylic coated fiberglass sleeve is E-glass fiber braided sleeving coated with a layer of acrylic resin.
It is a carefully engineered, high dielectric sleeving, having an initial average dielectric of 7 kV and a 1/32" wall outer layer of unsaturated glass, braided over and bonded to the acrylic sleeving.
It is a heat-treated, tightly braided fiberglass sleeving coated with a dielectric acrylic resin. This durable sleeving will withstand mechanical stress and holds it’s dielectric strength on all bends.
It is extremely flexible and easily installed. It is used in electrical apparatus such as electric motors, transformers, generators, home appliances, lighting fixtures, instrument circuits and controls, switchgear, breaker panels, welding equipment.

Main advantages of the Acrylic Coated Fiberglass Sleeve

—Acrylic resin continuously coated over premium electrical grade braided fiberglass sleeving.
 —Excellent flexibility, cut-through and mechanical abrasion resistance
—Rated class 155ºC electrically.
—Compatible with all magnet wire coatings as well as insulating varnishes such as polyesters, epoxies, phenolics and formvar
—Approved component in most UL insulation systems.
—Made from Clear, modified acrylic resin which offers increased mechanical strength and improved thermal stability.
—It has been approved by UL (NO.: E310670) ,ROHS and REACH test.

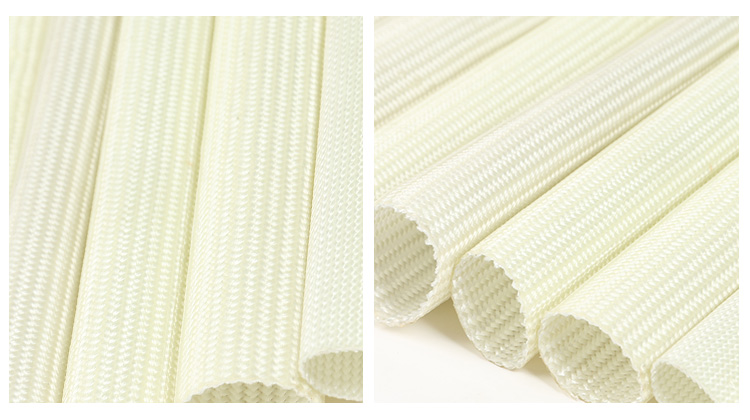

acrylic coated fiberglass sleeve

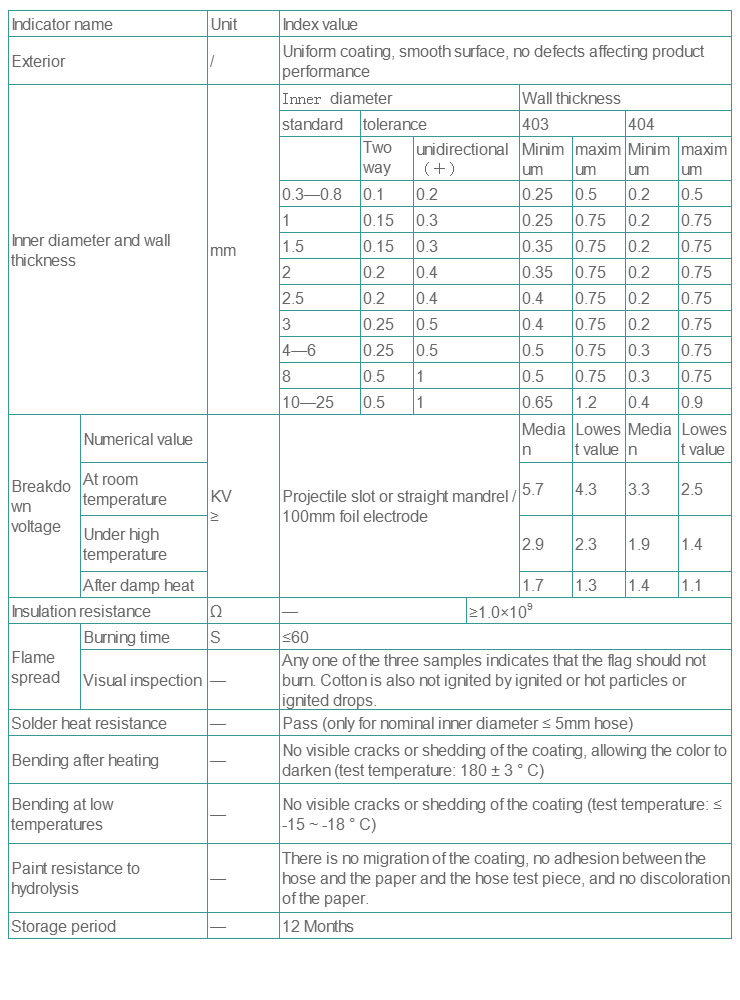

Technical Parameters





Applications

2740 acrylic coated fiberglass sleeve can be used for wiring insulation and mechanical protection for motors, appliances, meters, radios, etc
Specifications:
Insulation class: F class (155 °C)
Color: Red, white, black,etc
Inside diameter: 1-35mm
Voltage:1.5kv,4kv.
acrylic coated fiberglass sleeve
