1040 Phenolic Modified Polyester Impregnating Varnish

Main Parameters:

Model: YA1040

Insulation class: F class (155 °C)

Can be customized

product information

Composition of the Phenolic Modified Polyester Impregnating Varnish :

polyester resin, modified resin, xylene, butyl acetate, etc.
insulation varnish

Main advantages of the Phenolic Modified Polyester Impregnating Varnish :

F grade insulating material. Has excellent mechanical, heat resistance and electrical properties, long-term operating temperature of 155 °C.

Phenolic Modified Polyester Impregnating Varnish

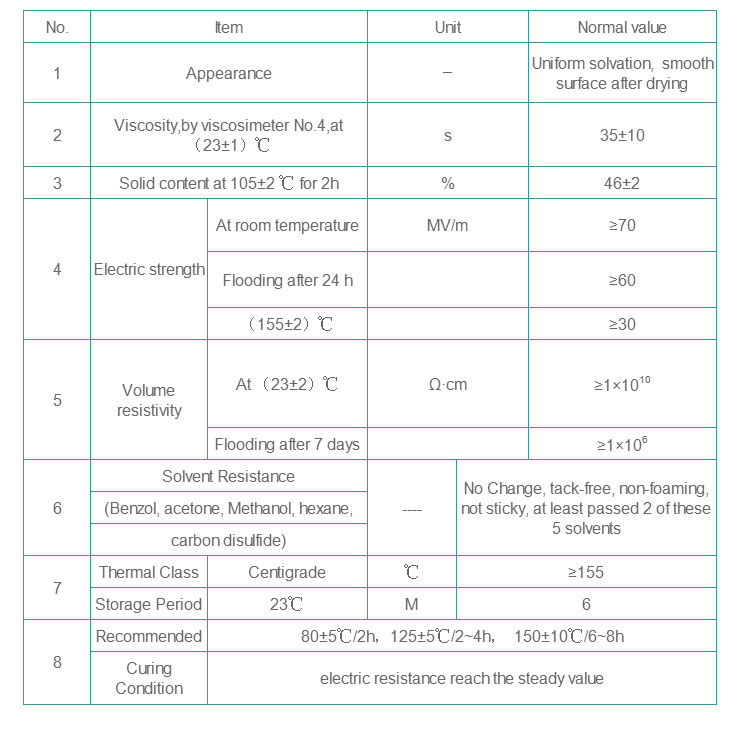

Technical Parameters





Applications
1040 Phenolic Modified Polyester Impregnating Varnish is used for impregnated insulation and protection of F-class motors and electrical windings.

Previous:  1038 Amino Alkyd quick-drying Insulating Impregnated Varnish

Next:  1042 Imine Epoxy Insulation Impregnating Varnish
