Model: 3722/3723/3724/3725
Insulation class: E class (105 °C)
Regular length: 1000mm
Diameter:4mm-20mm
Can be customized

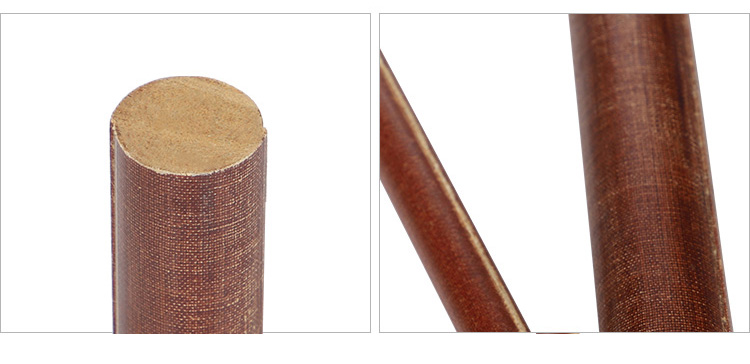

Phenolic cotton cloth laminated rod is made of cotton cloth impregnated with phenolic resin and hot-pressed by a molding die.
The phenolic epoxy resin cotton cloth laminated rods are used as insulation and construction material for continuous work in transformer oil and in the air at normal relative humidity and at a temperature range from -65°C to +120°C.
—High mechanical properties;
—Good electrical properties;
—Easily machining
—It has been approved by UL (NO.: E310670) ,ROHS and REACH test.
Phenolic cotton cloth laminated rod is suitable for insulation structural parts in electrical equipment and can be used in oil transformer..
