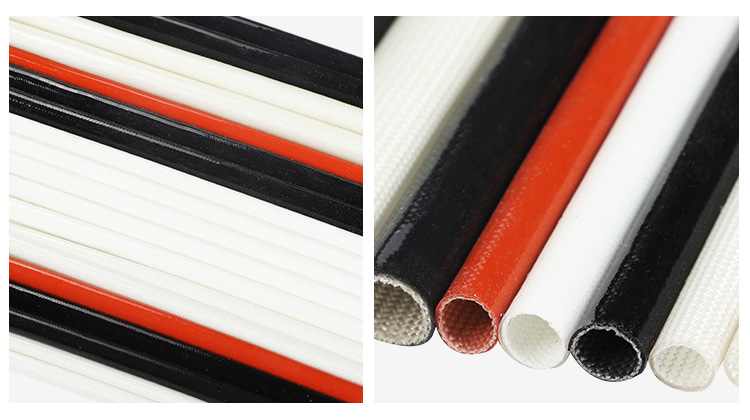

2753 Silicone Resin Fiberglass Self-extinguish Sleeve

Main Parameters:

Model: 2753

Insulation class: H class (180 °C)

Color: Blue, green, white,black,red,etc

Inside diameter: 1-24mm

Voltage:1.5kv,2.5kv,4kv,7kv

product information

Brief Introduction of Silicone Resin Fiberglass Self-extinguish Sleeve

Silicone resin fiberglass self-extinguish sleeve is non-alkali glass fiber yarn processed by high temperature treatment,then coated with silicone copolymer resin.
The high temperature resistant silicone sleeve is made of alkali-free glass fiber yarn woven into a tube, coated with organic high temperature resistant silicone resin and processed by high temperature.
With flame retardant, thermal insulation, thermal insulation,electrical resistance, softness and other properties. It is mainly used for cable insulation protection in high temperature places such as iron and steel plants, smelters, glass plants, fire fighting equipment, large-scale transformer places.

Characteristics of Silicone Resin Fiberglass Self-extinguish Sleeve

—Temperature class: H grade (180 °C)
—Voltage:1.5kv,2.5kv,4kv,7kv
—Inside diameter: 1-24mm
—High density fiberglass braiding and liquid silicone resin
—Color: Blue, green, white,black,red,etc
— It has been approved by UL (NO.: E310670) ,ROHS and REACH test.

Silicone Resin Fiberglass Self-extinguish Sleeve

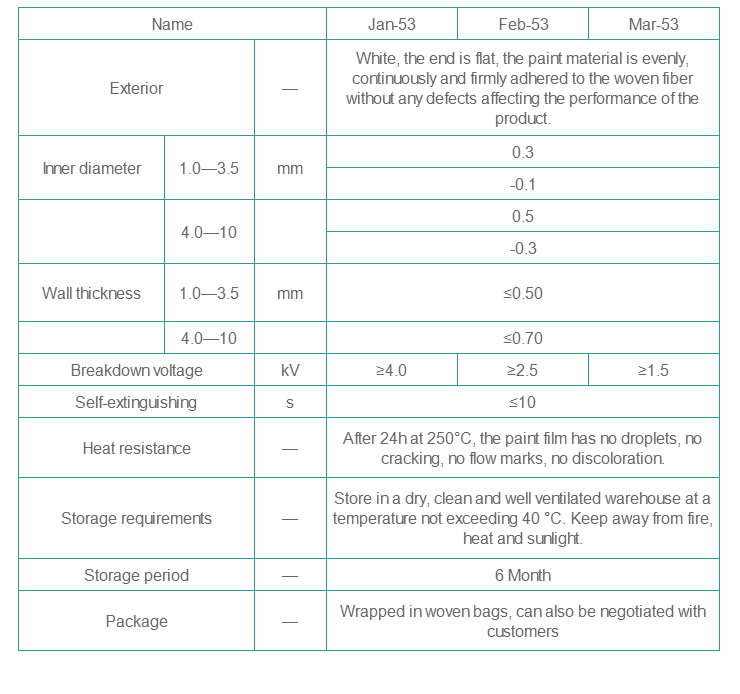

Technical Parameters





Applications

2753 silicone resin fiberglass self-extinguish sleeve can be used for insulation protection of H-class motor insulation, household appliances, televisions and electronic instruments.
insulation sleeve
