2715 PVC Coated Fiberglass Sleeve

Main Parameters:


Model: 2715

Insulation class: A class (105 °C)

Line color: Blue, green and pink.

Inside diameter: 1-35mm

Voltage:1.5kv,2.5kv,4kv

product information

Brief Introduction of 2715 PVC Coated Fiberglass Sleeve

PVC coating fiberglass sleeve is E-glass fiber braided sleeving coated with polyvinyl chloride resin.
It has excellent softness and elasticity as well as good dielectric properties and chemical resistance.

PVC Coated Fiberglass Sleeve Features:

—High temperature, abrasion and oil resistant
—Resists fraying, bending and knotting
—Woven fiberglass braid impregnated with a heat resistant, extremely tough and flexible plastic insulation
—Compatible with all insulation and conductor types
—Treated to remove all organic matter and resist fraying
—Non-corrosive and has extremely high fungus resistance
—It has been approved by UL (NO.: E310670) ,ROHS and REACH test.

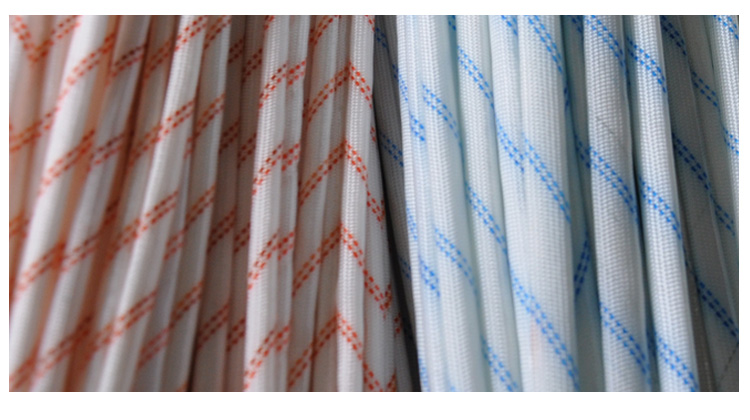

PVC Coated Fiberglass Sleeve

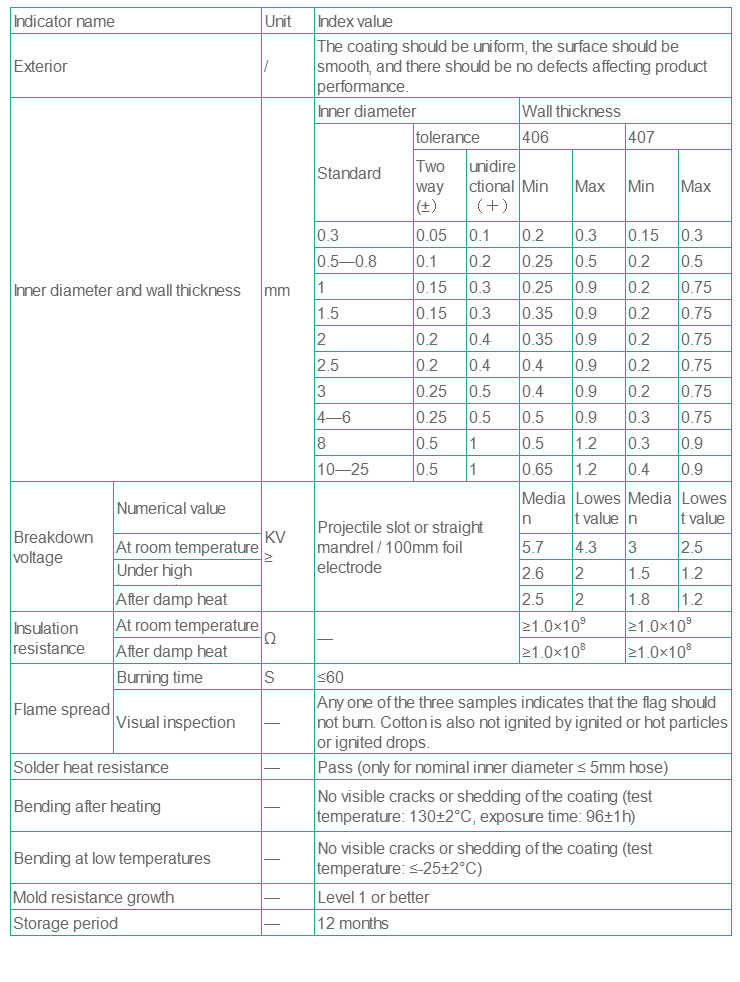

Technical Parameters





Applications

2715 PVC coating fiberglass sleeve is suitable for wiring insulation and mechanical protection of motors, electrical appliances, instruments, radios, etc.
Specifications:
—Insulation class: A class (105 °C)
—Line color: Blue, green and pink.
—Inside diameter: 1-35mm
—Voltage:1.5kv,2.5kv,4kv
PVC Coated Fiberglass Sleeve
