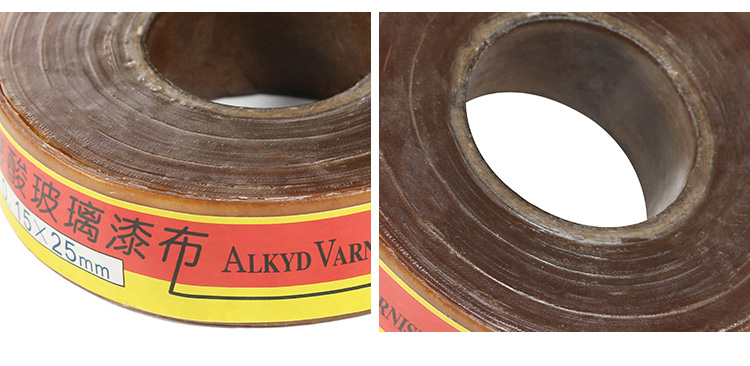

Alkyd varnished glass cloth

Model: 2432

Insulation class: B class (130 °C)

Width: 1250mm ± 20mm

Thickness:0.11-0.25mm

Can be customized

product information

Description：

Alkyd varnished glass cloth is prepared by impregnating the glass fibre cloth alkyed varnish and then baking the coated cloth.

It has been approved by UL (NO.: E310670) ,ROHS and REACH test.

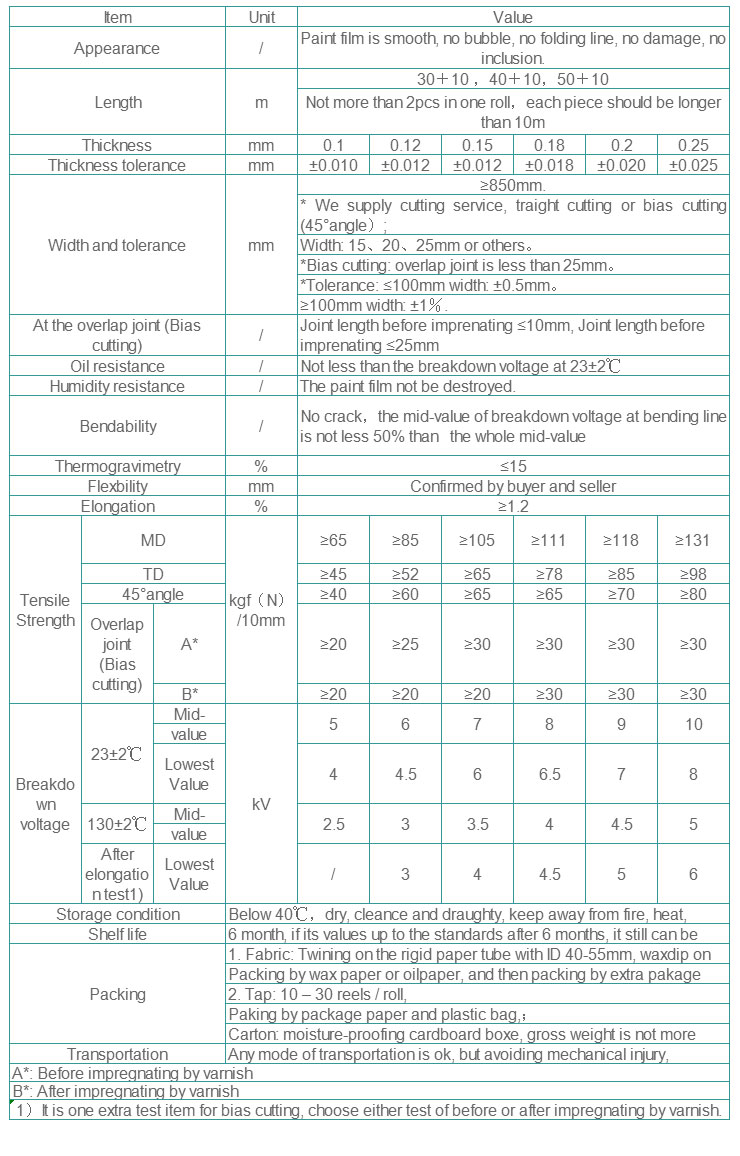

Technical Parameters

Applications

2432 alkyd varnished glass cloth can be used for coil insulation and slot liner of electrical machines and appliances with class B insulation system.
