Oil varnishd synthetic fabric

Model: 2310

Insulation class: A class (105 °C)

Regular width: 1400mm ± 20mm

Thickness:0.08-0.15mm

Can be customized

product information

Description：

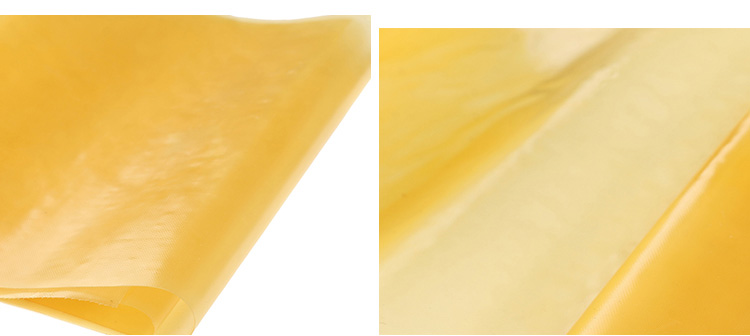

Oil varnishd synthetic fabric is made from the insulating silk, and  dipped in the oil varnish, then be baked dry.

It has been approved by UL (NO.: E310670) ,ROHS and REACH test.

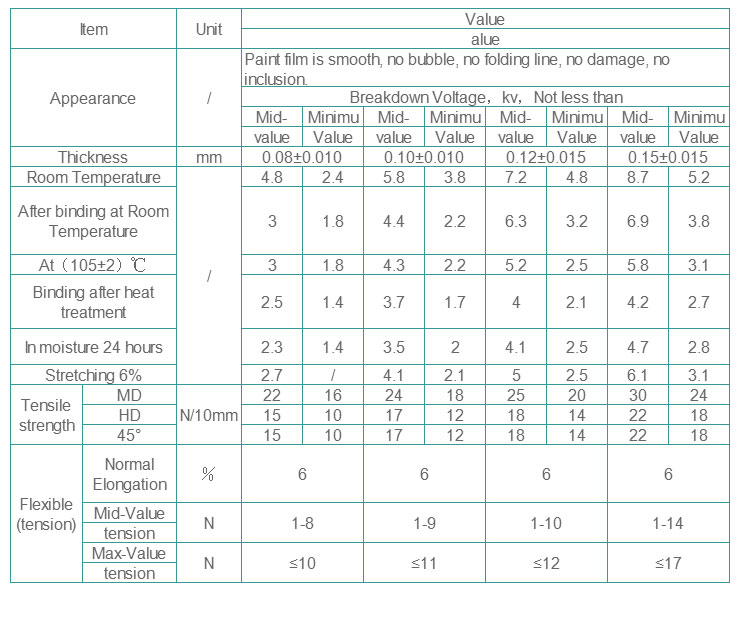

Technical Parameters

Applications

2310 oil varnishd synthetic fabric can be used for the binding and insulating materials for the electric motors, appliances, etc.
